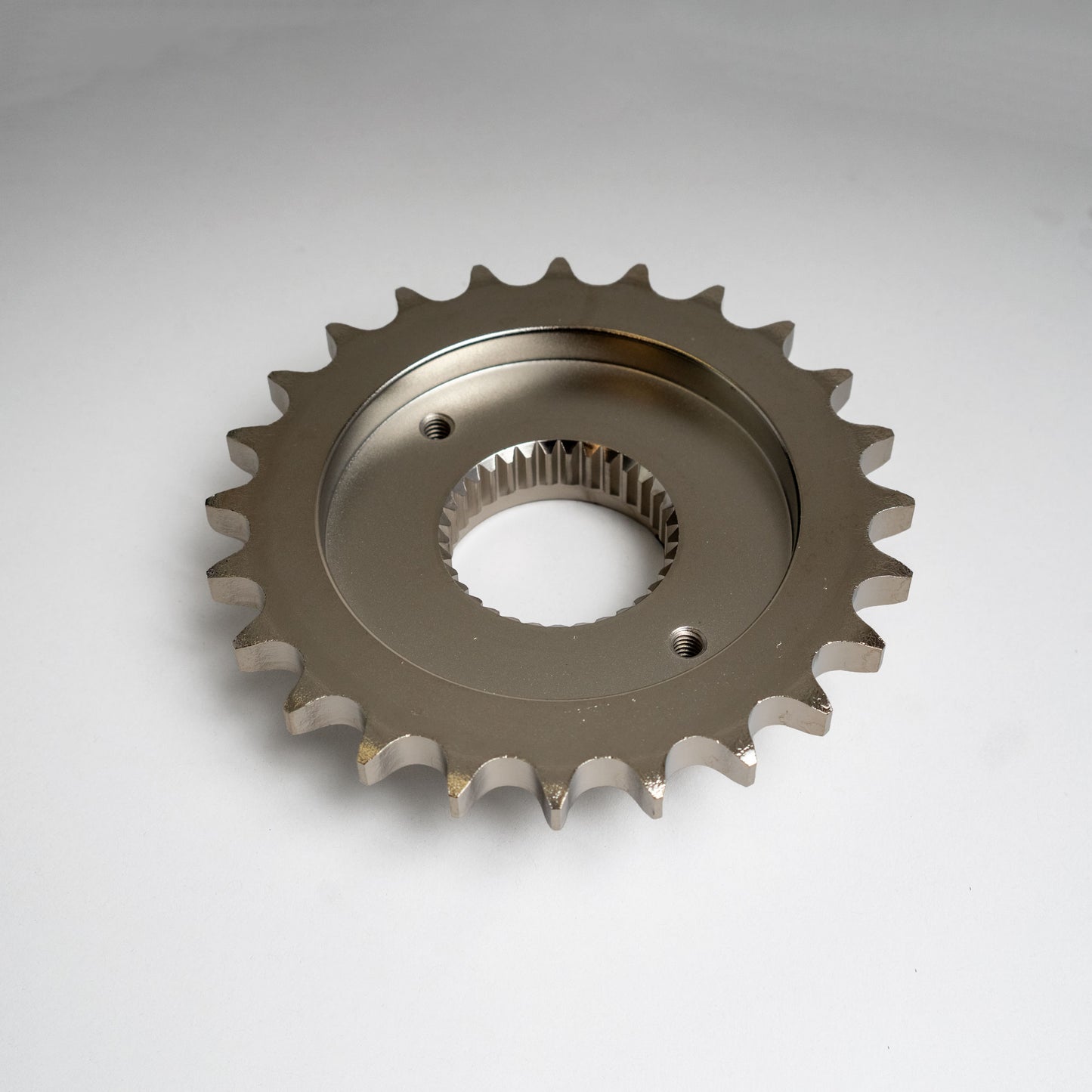

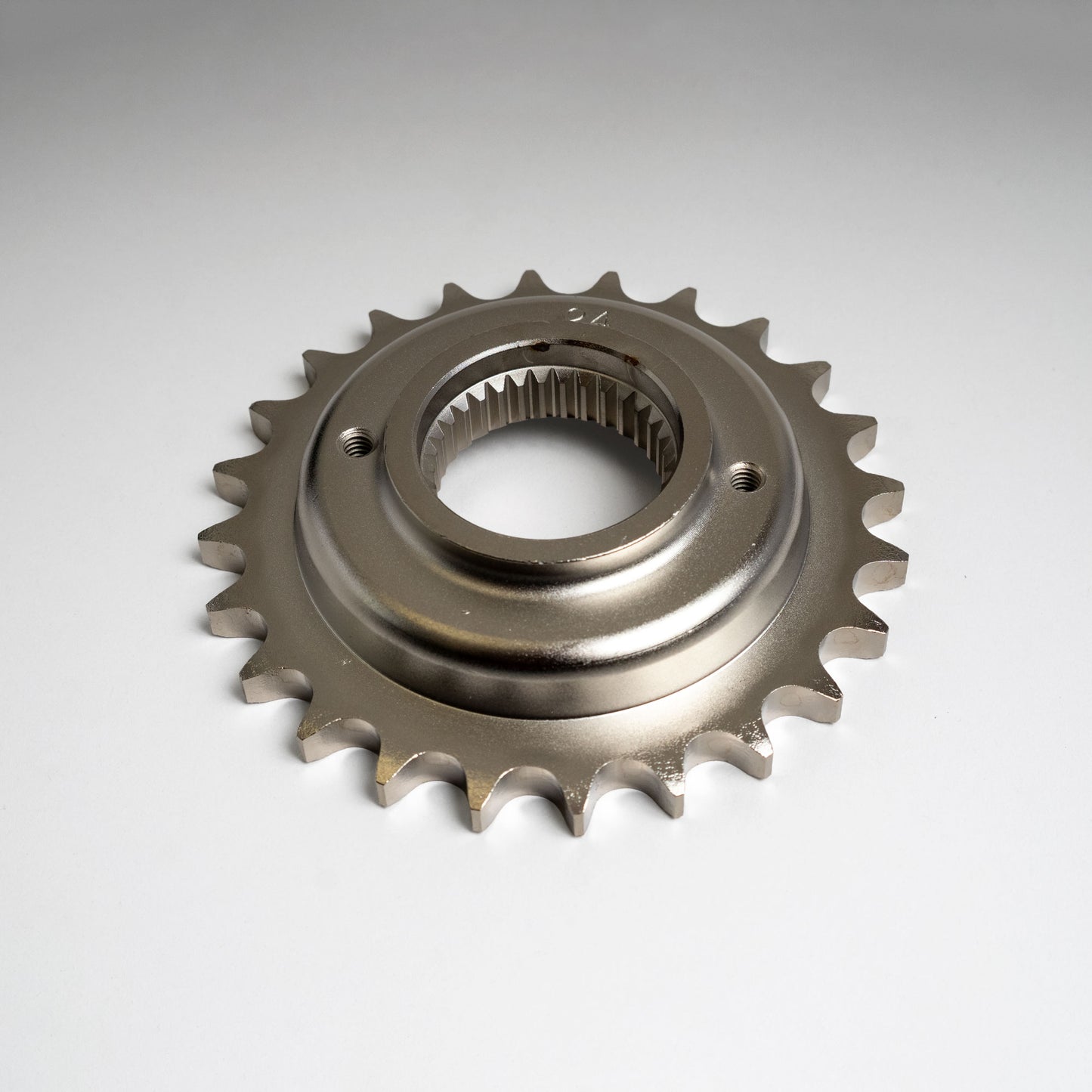

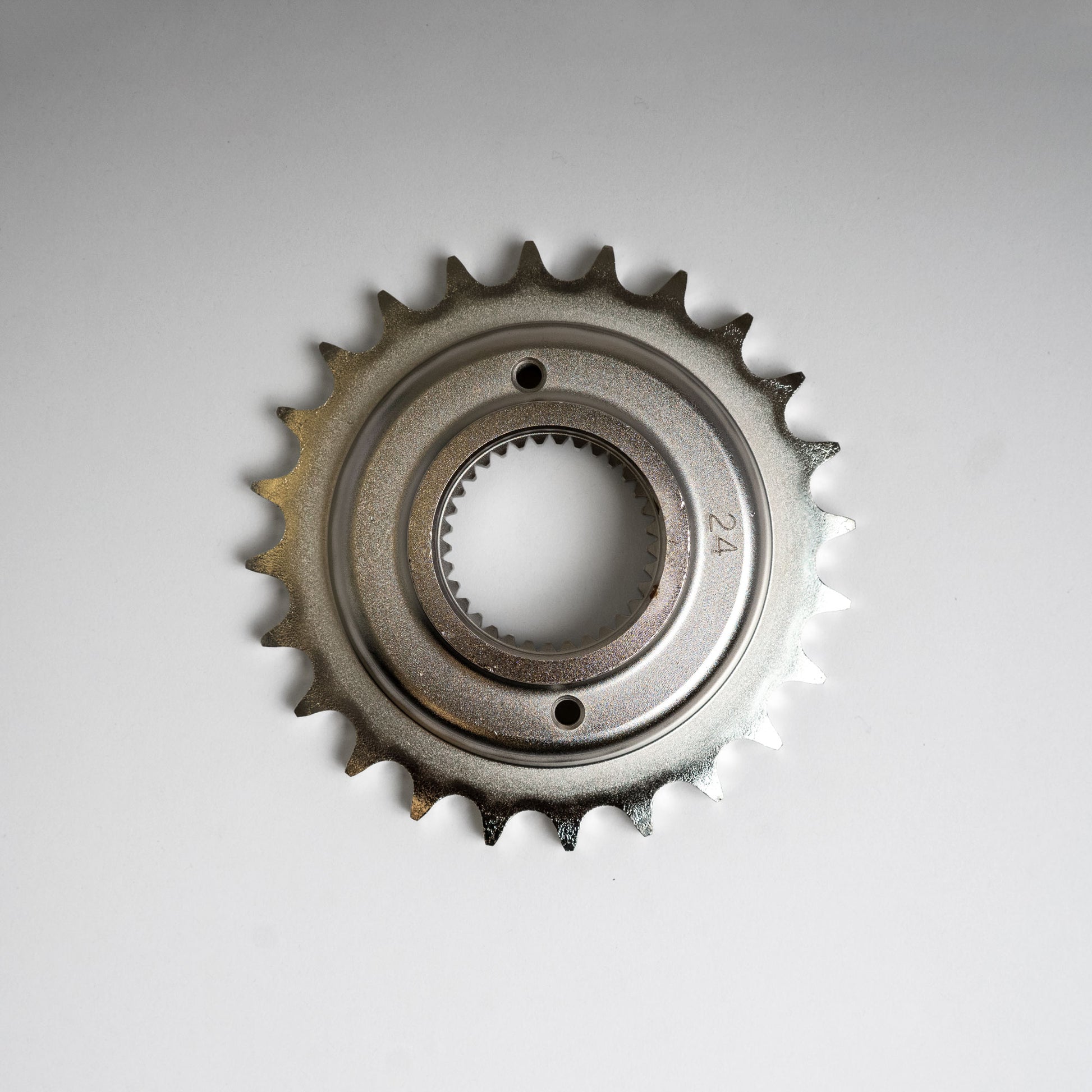

24 Tooth Offset 5 Speed Transmission Sprocket '85 Up

24 Tooth Offset 5 Speed Transmission Sprocket '85 Up

24 Tooth Offset Transmission Sprocket is designed to convert your belt-drive setup to a chain drive on big twin Harley's. A most for your hardtail chopper build.

For 530 size chains

Pair this with a 48 tooth rear sprocket to have the most ideal gear ratio.

$55.00 USD
$55.00 USD
Sale Sold out

WHY IT RULES

  • Allows conversion from belt drive to offset chain drive
  • Creates clearance for wider-than-stock rear tires
  • 24-tooth count for balanced gearing and smooth power delivery
  • Designed for 530 size drive chains
  • Works with right or left side drive configurations
  • Compatible with both 5- and 6-speed transmissions

WHAT'S iN THE BOX

(1) 24 tooth offset transmission sprocket

Installation

  • Fits Big Twin 5-speed transmissions, 1985–later, with spline drive gear
  • Can be used on 5- or 6-speed transmissions with proper setup

1985–early 1994 models require:

  • Spacer 72201 (HD# 33344-94)
  • Seal 74713 (HD# 12067A)
  • Verify chain alignment and clearances before final assembly

SHIPPING

  • Securely packaged to protect splines and tooth surfaces
  • Ships quickly so your build keeps moving
