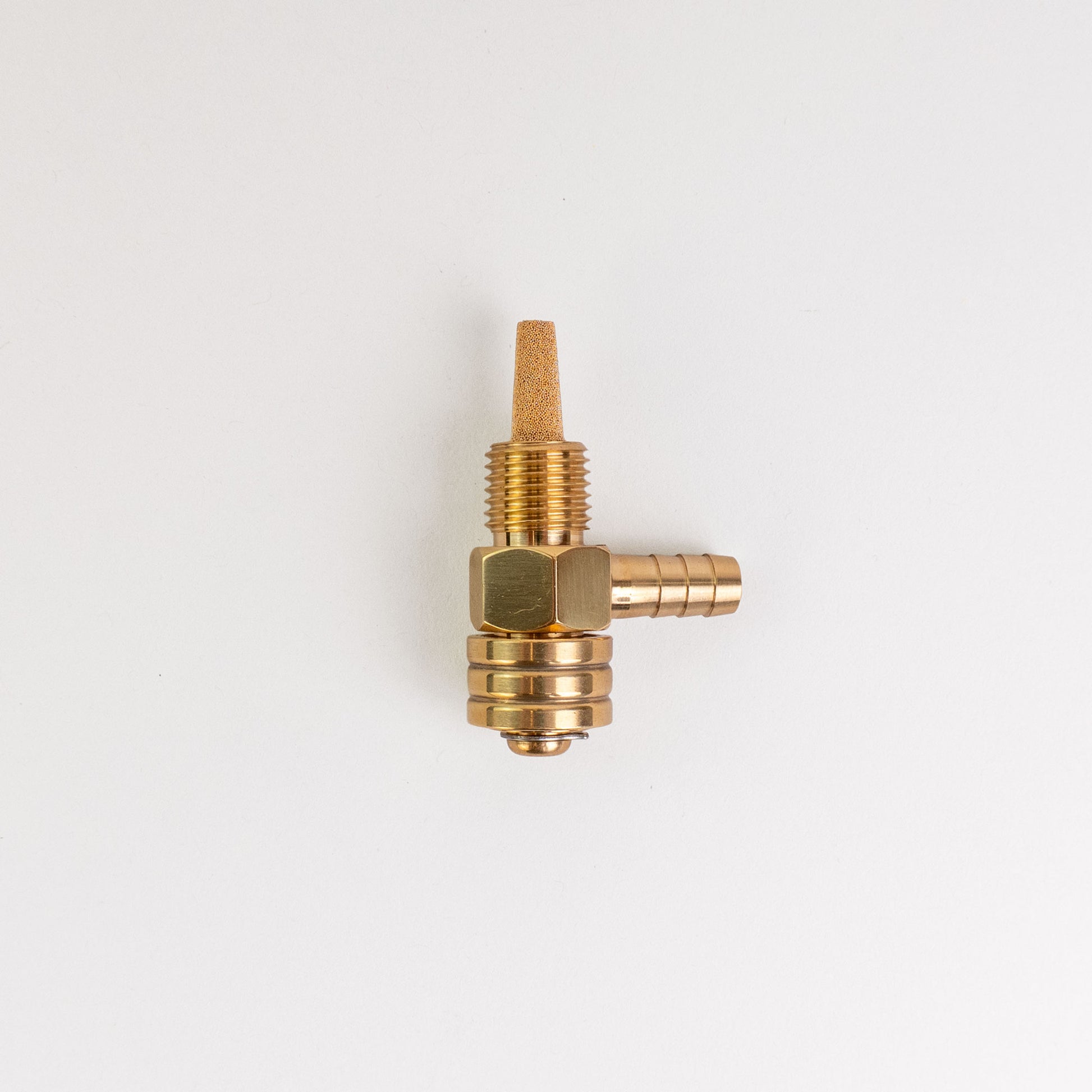

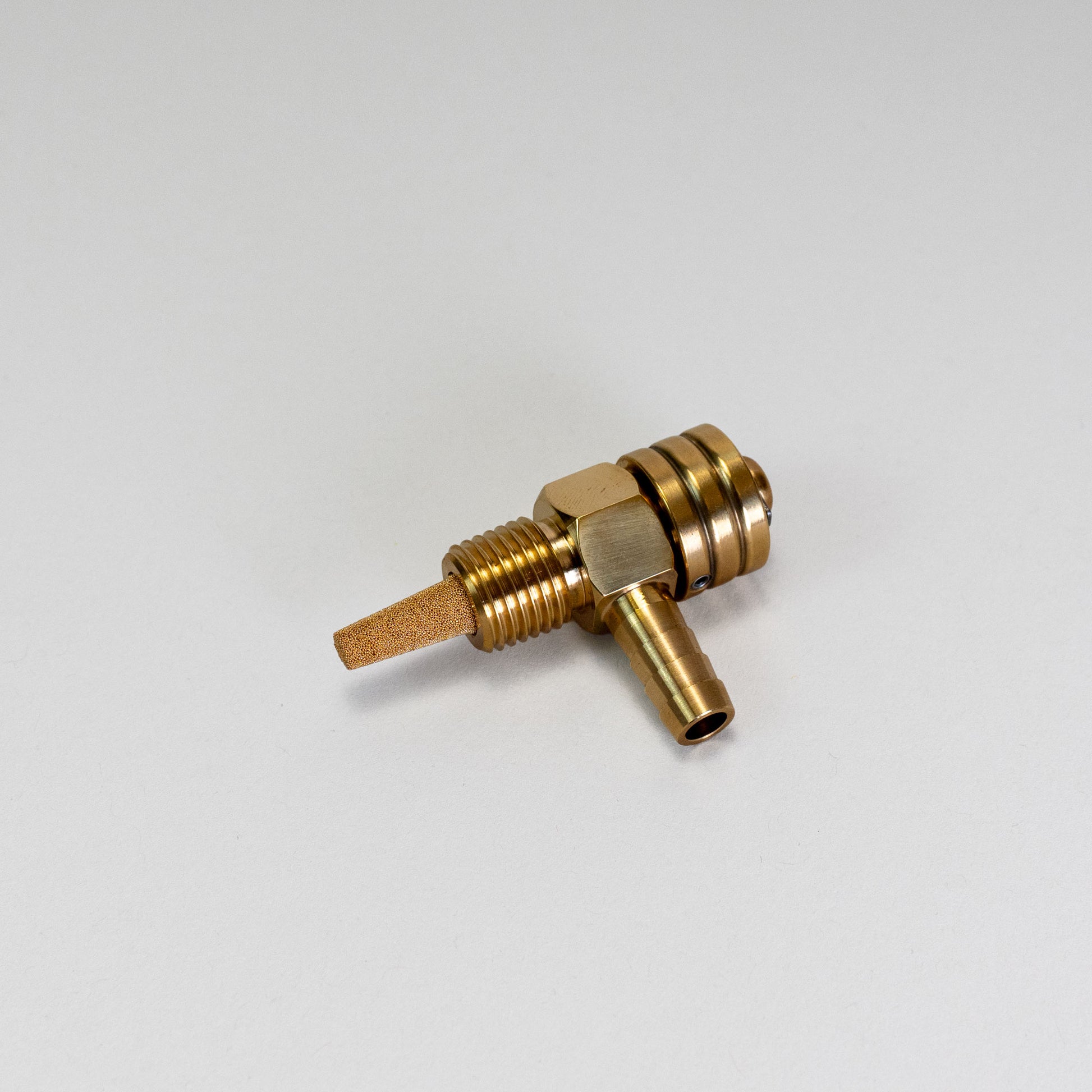

Prism Supply 1/4” NPT 90° Petcock

This compact petcock threads directly into a 1/4" NPT bung on your gas tank for a clean, simple fuel outlet setup. It features a 5/16" hose barb for standard fuel line and an integrated fuel filter on the tank side of the petcock.

Fuel flow is controlled by rotating the grooved cylindrical section of the petcock to turn the fuel on or off. The hose barb remains stationary during operation, so the fuel line does not twist or rotate when shutting the fuel on or off.

Details

1/4" NPT threaded tank connection
90° fuel outlet
5/16" diameter fuel hose barb
Integrated fuel filter
Simple rotating on/off control
Stationary hose barb keeps the fuel line from twisting
No reserve position
Compact design keeps the fuel outlet clean and minimal

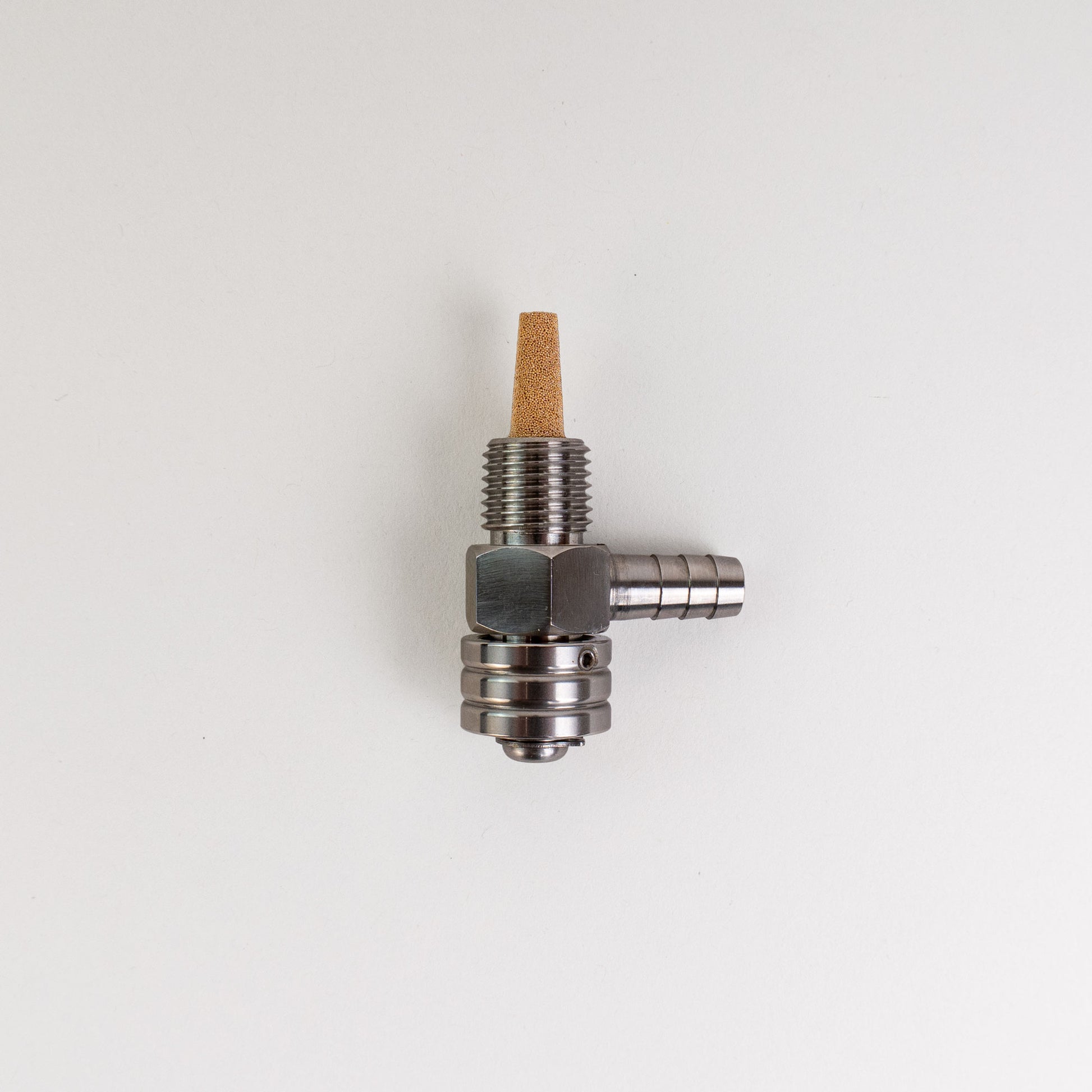

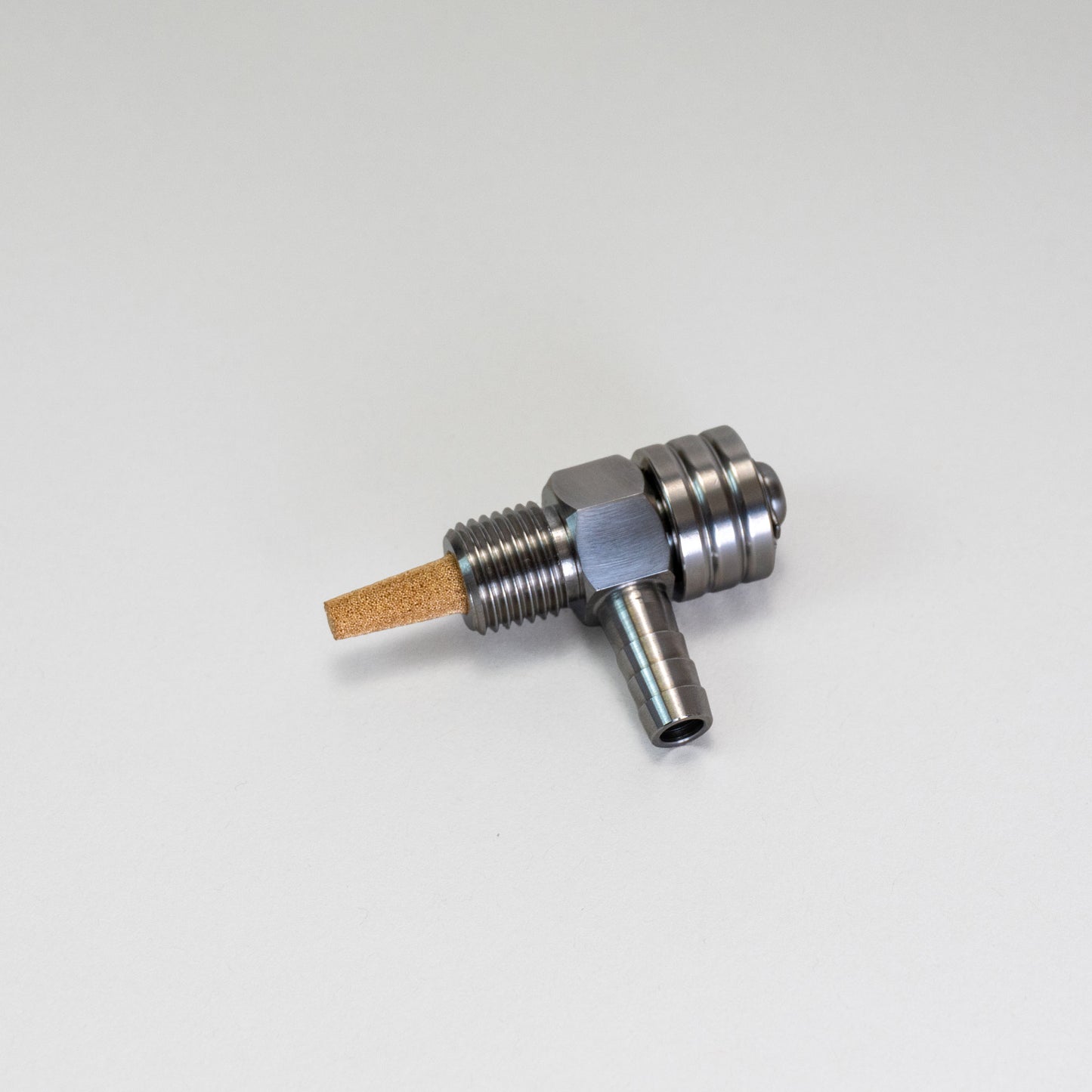

Material Brass Stainless Steel

$109.99

Sale Sold out

WHY IT RULES

Threads directly into tanks with a 1/4" NPT bung
90° outlet provides cleaner fuel line routing in tight spaces
Provides straightforward on/off fuel control
Keeps the fuel line stationary during operation
Integrated filter helps keep debris from entering the fuel line
Compact construction works well for clean custom tank setups

WHAT'S iN THE BOX

(1) 1/4" NPT 90° petcock with integrated fuel filter

Installation

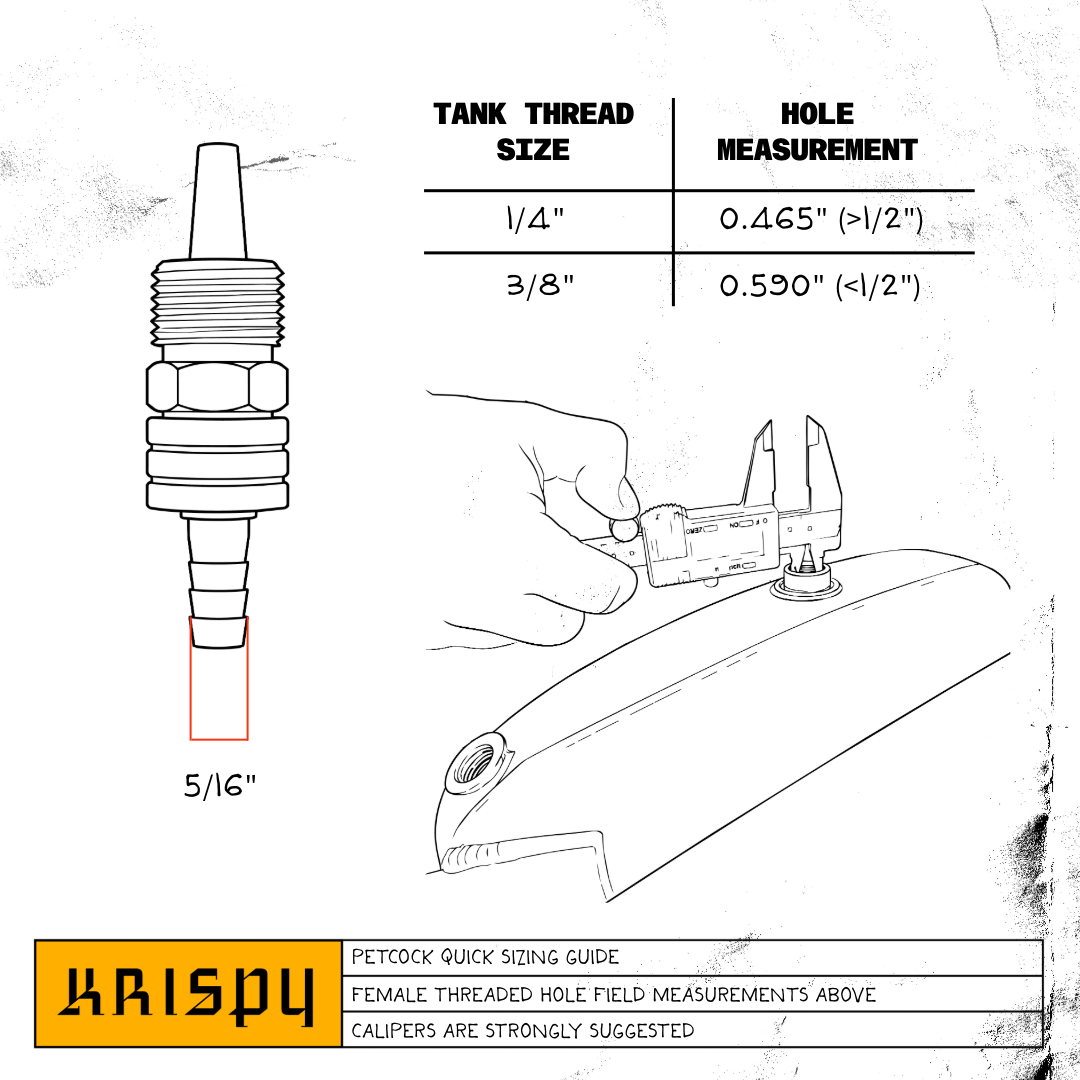

Designed for gas tanks with a 1/4" NPT threaded petcock bung and fuel systems using 5/16" fuel line. Confirm thread size, fuel line size, and clearance before installation.
Install using proper fuel-compatible thread sealant where required. After installation, check all connections for leaks before operating the motorcycle. Always follow the appropriate factory service manual and standard fuel-system safety procedures.
